Panels: No Panel
Length: 40ft
Color: White
> Overview

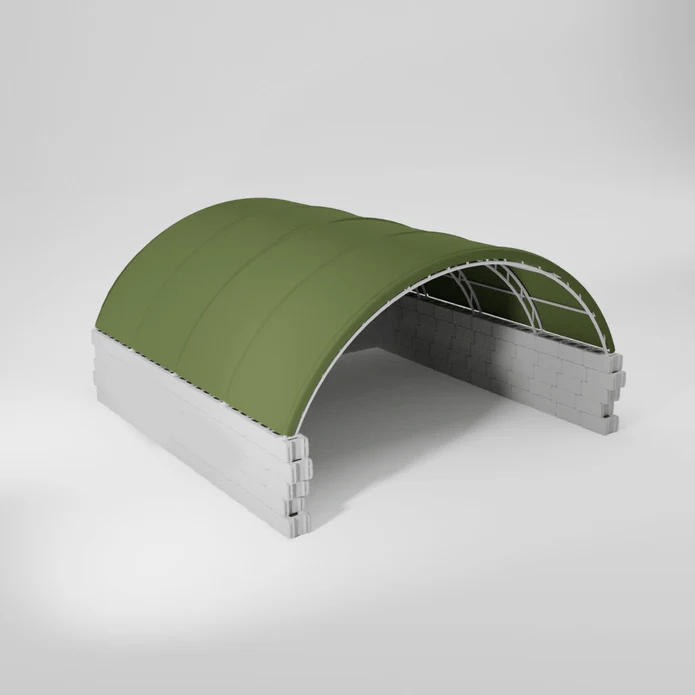

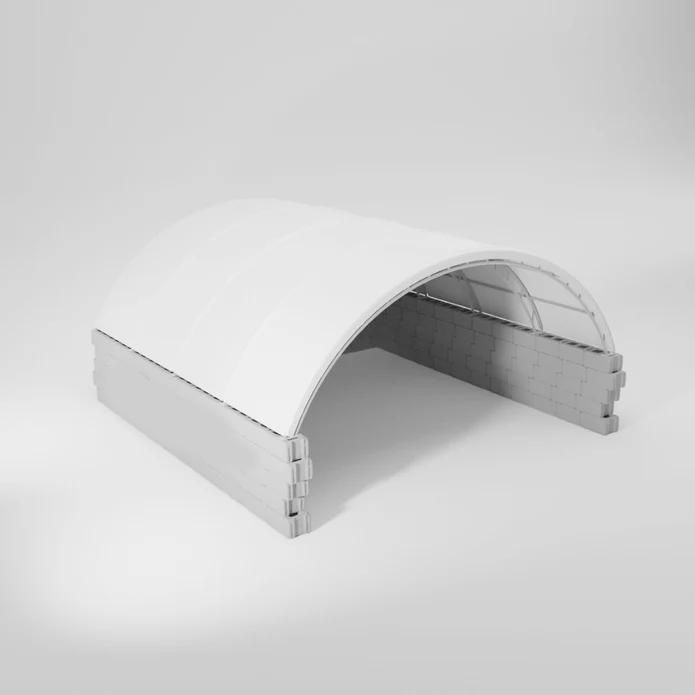

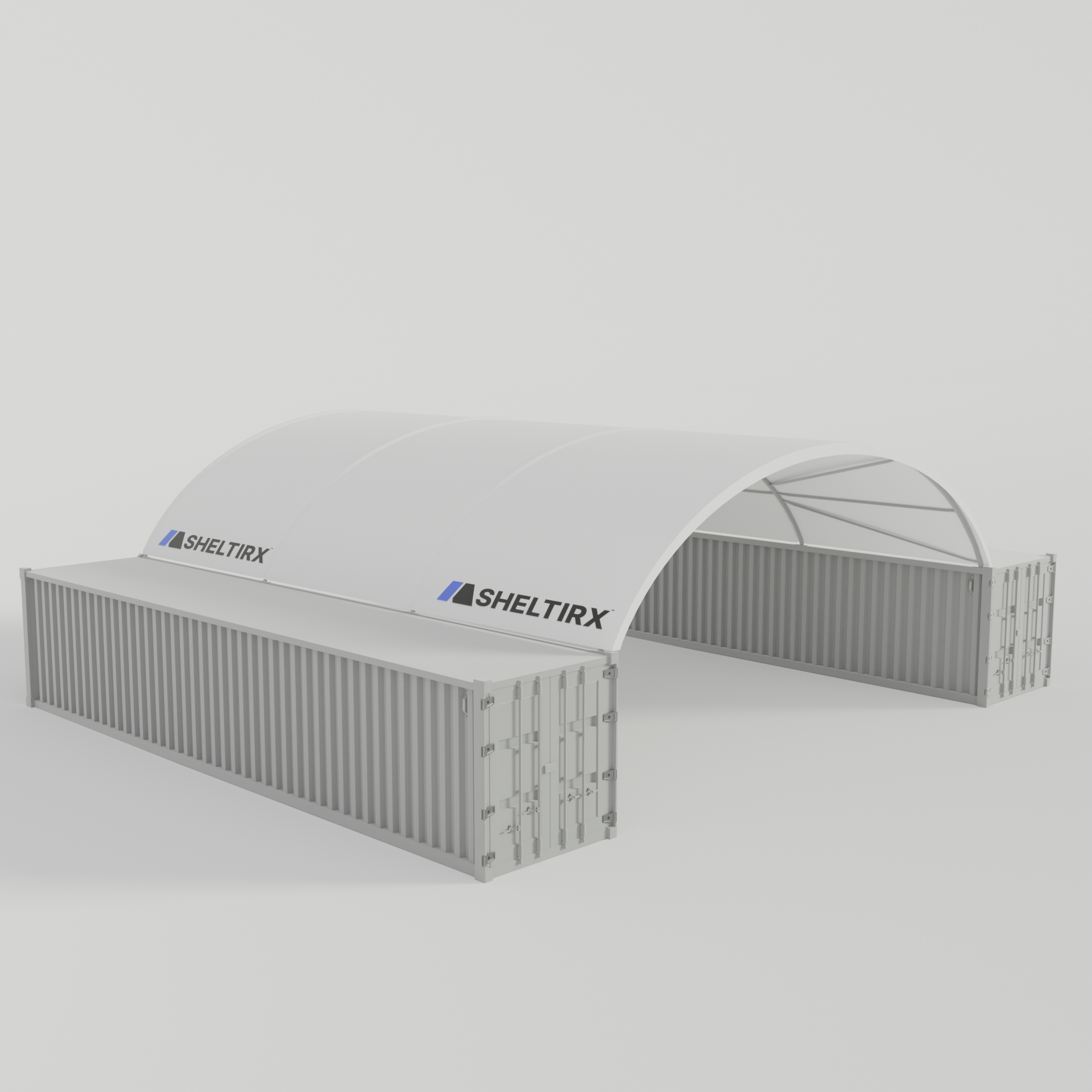

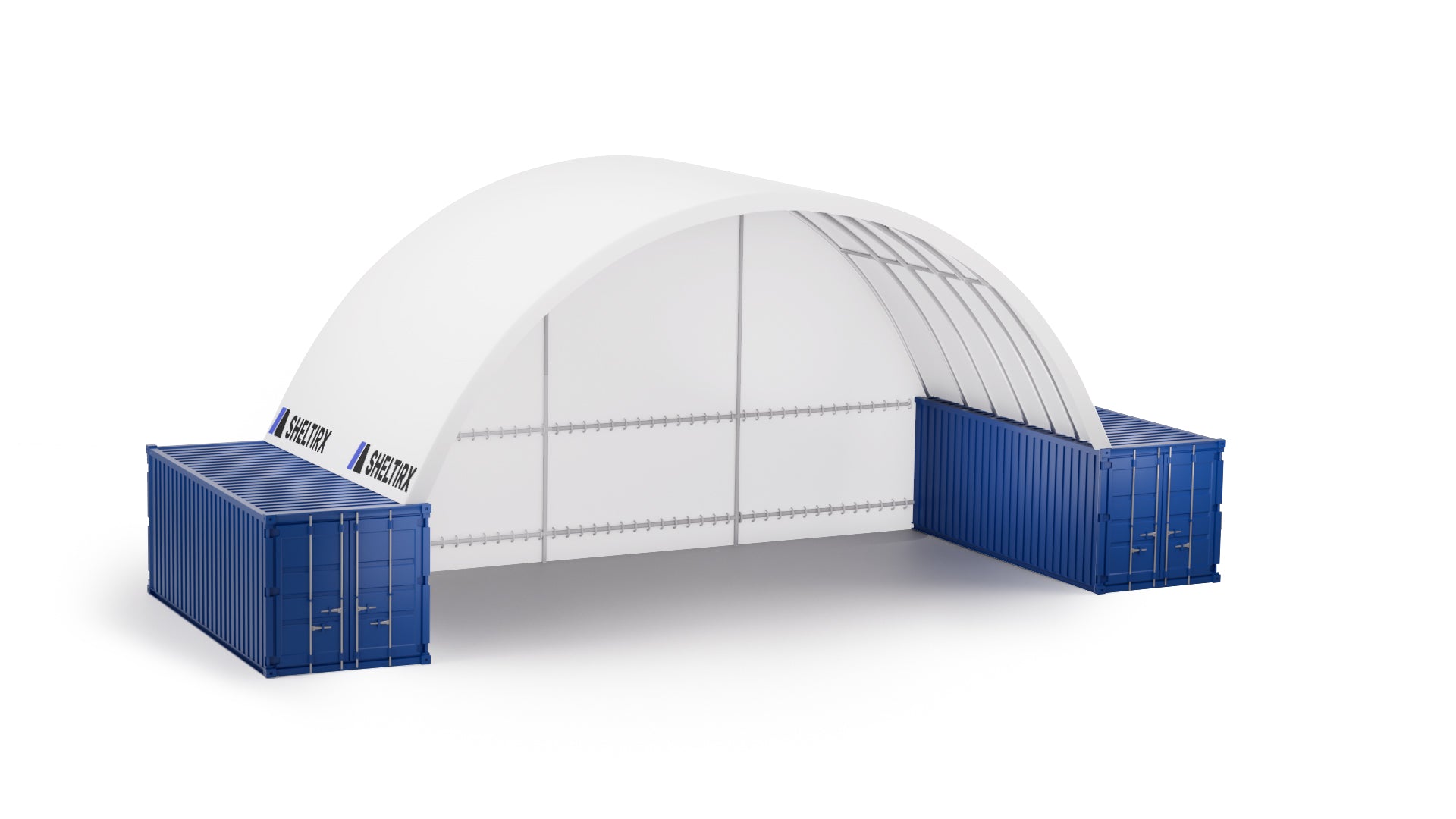

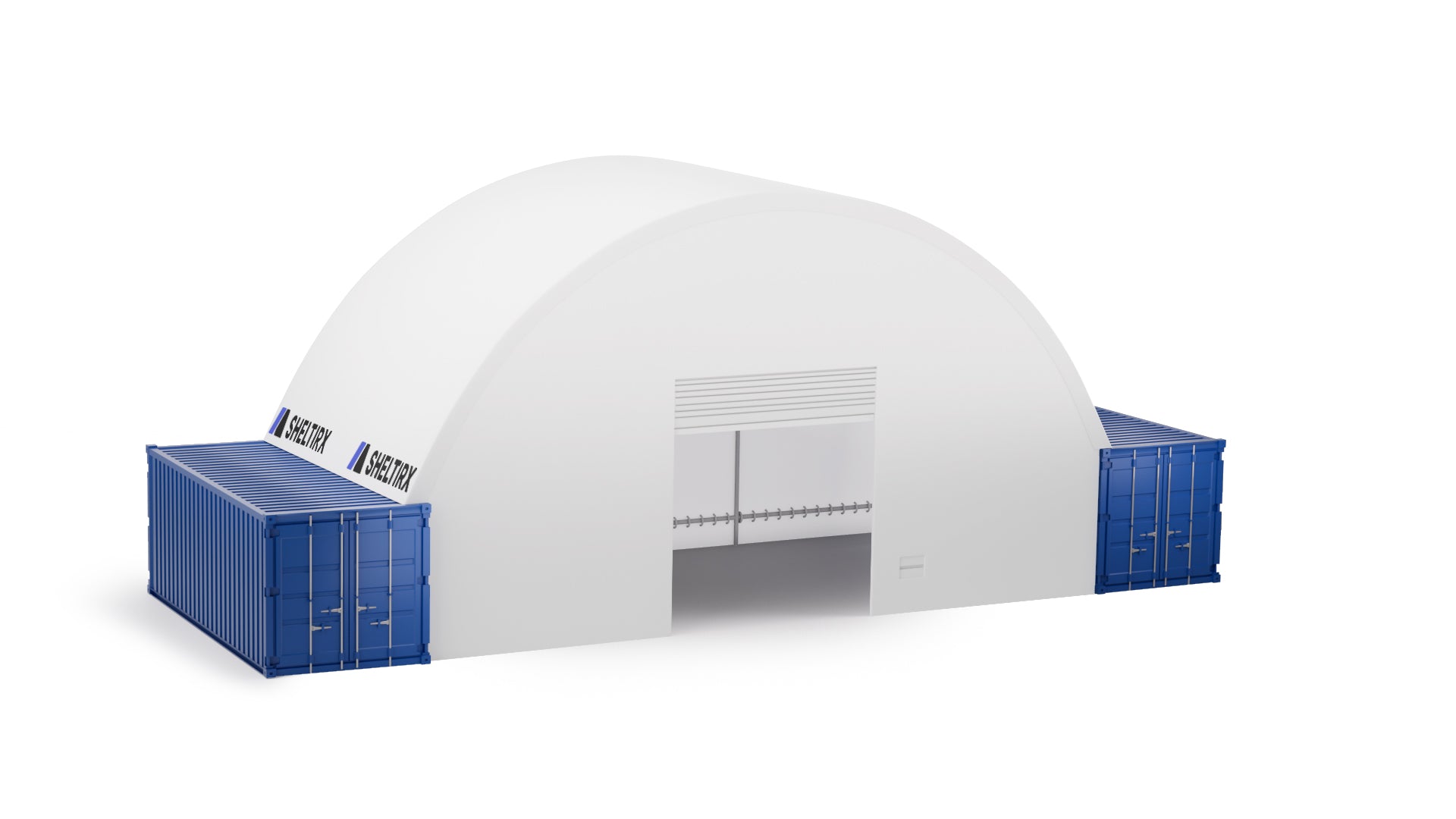

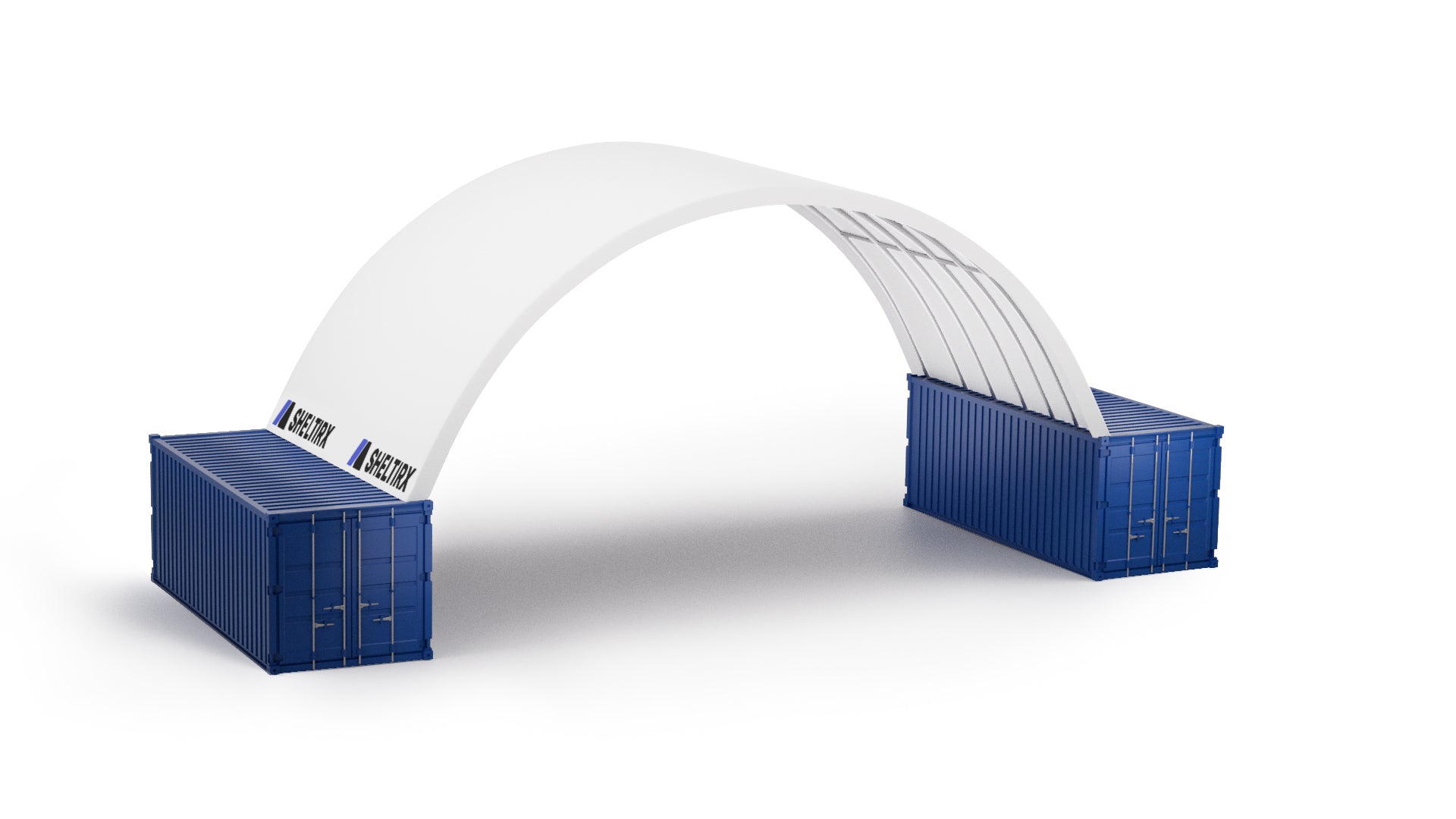

The SkyShield™ 40-ft Series Double Truss Container Canopy (also called a conex canopy or container shelter) spans 40-ft clear width and is available in 40, 80, or 120-ft lengths. This makes it a compact yet versatile canopy solution, providing reliable coverage for industrial, construction, logistics, and agricultural sites.

Its double truss steel frame maximises load-bearing capacity, while the 650-900gsm fire-retardant PVC cover delivers long-lasting weather protection. Designed for rapid installation and easy relocation, SkyShield™ is ideal for sites requiring robust all-weather shelter without permanent foundations.

Every SkyShield™ canopy is CE certified EN 1090 and built in compliance with Eurocode & IBC (International Building Code) wind and snow load standards, giving project managers the confidence needed for Tier-1 contractor and procurement approval.

> Key Benefits
  • Scalable Footprints → 40-ft span with 40 / 80 / 120-ft lengths.
  • Double Truss Strength → engineered to resist wind and snow loads.
  • Multi-use Shelter → shipping container canopy, conex canopy, or container shelter.
  • Relocatable → modular bolt-up design allows dismantling and re-use.
  • Compliance Ready → CE EN 1090 certified with Eurocode & IBC (International Building Code) design standards.

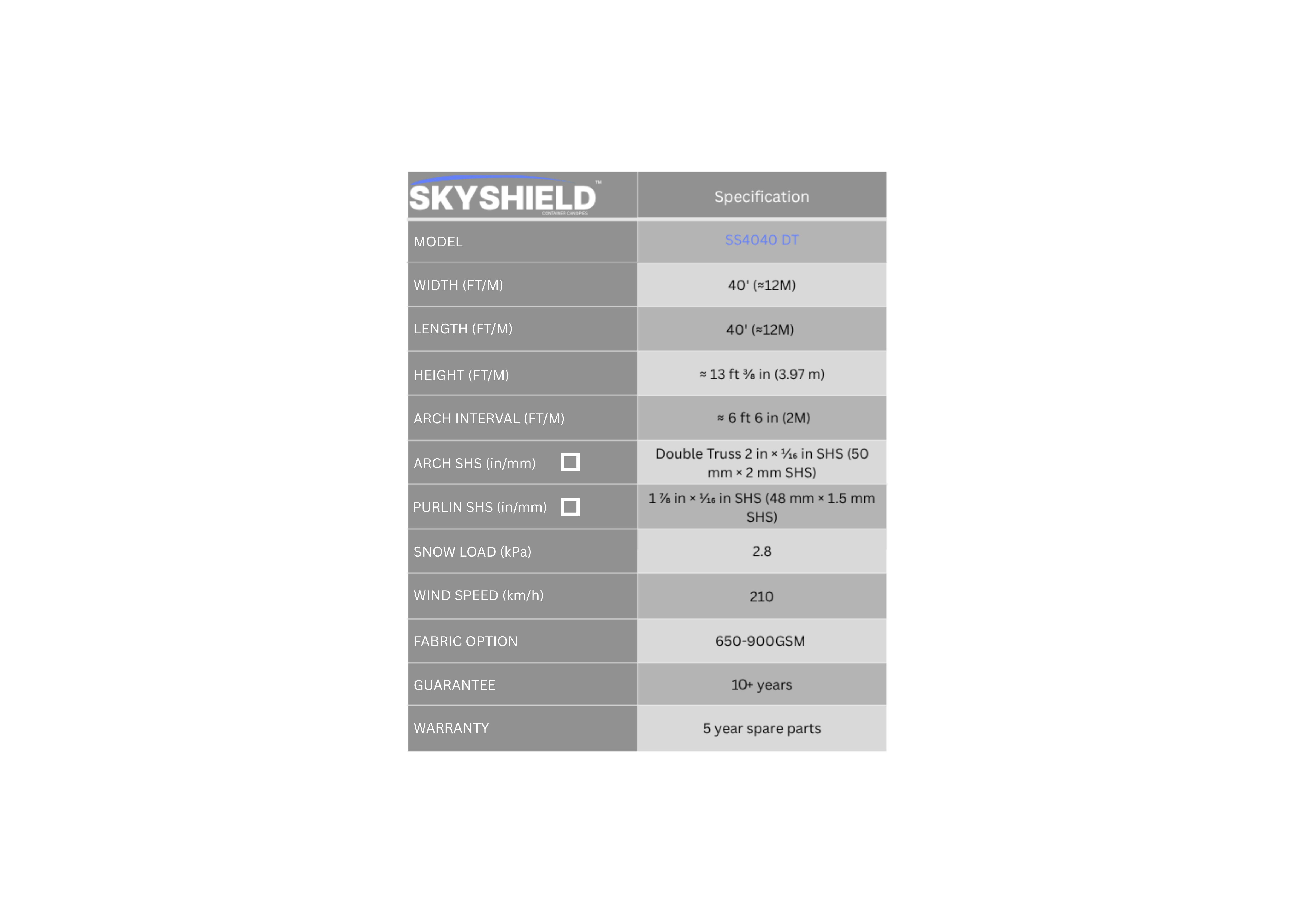

> Technical Specifications

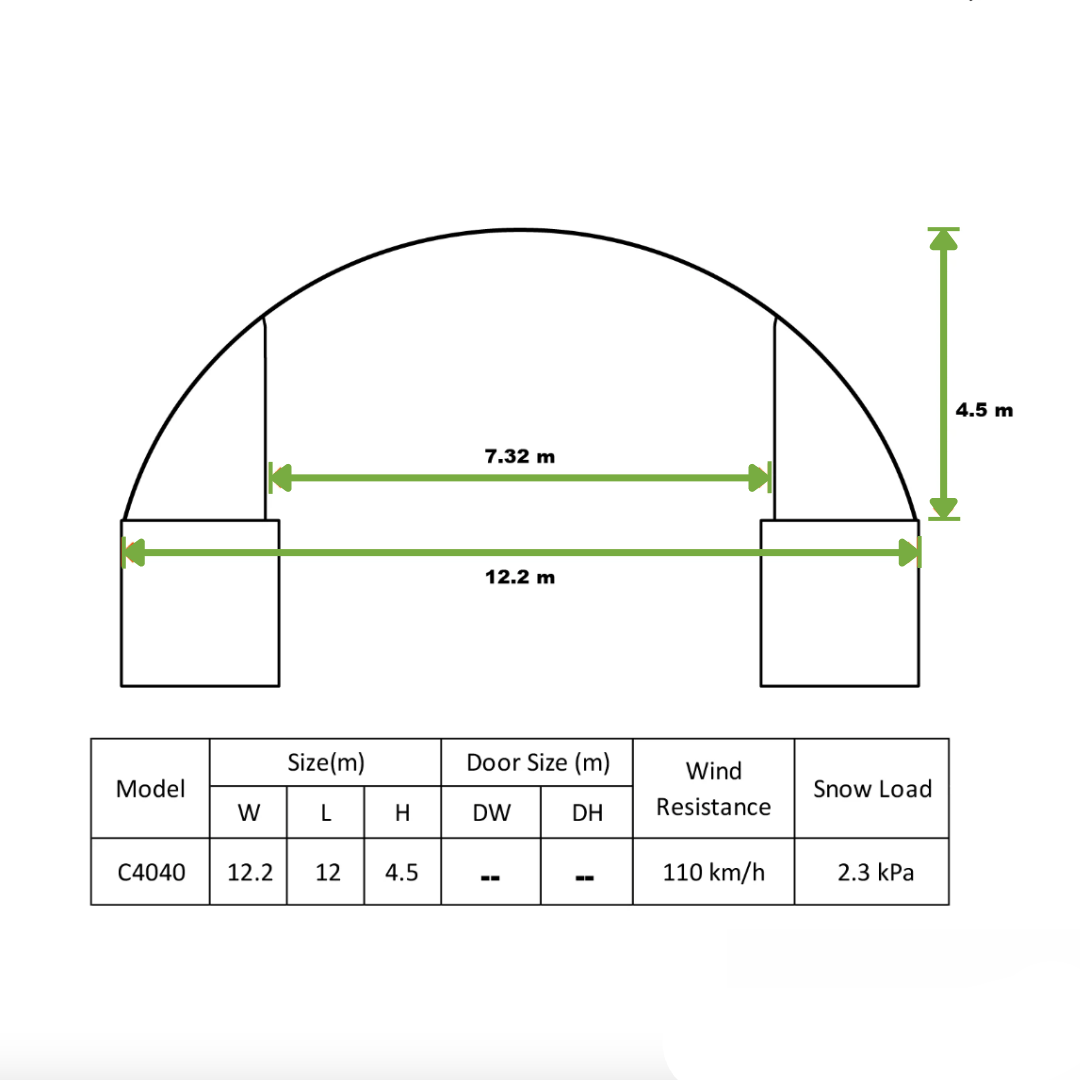

Model Dimensions (Span × Length) Covered Area
SkyShield™ 40×40 40 ft × 40 ft (12.2 m × 12.2 m) 1,600 ft² (149 m²)
SkyShield™ 40×80 40 ft × 80 ft (12.2 m × 24.4 m) 3,200 ft² (297 m²)
SkyShield™ 40×120 40 ft × 120 ft (12.2 m × 36.6 m) 4,800 ft² (446 m²)

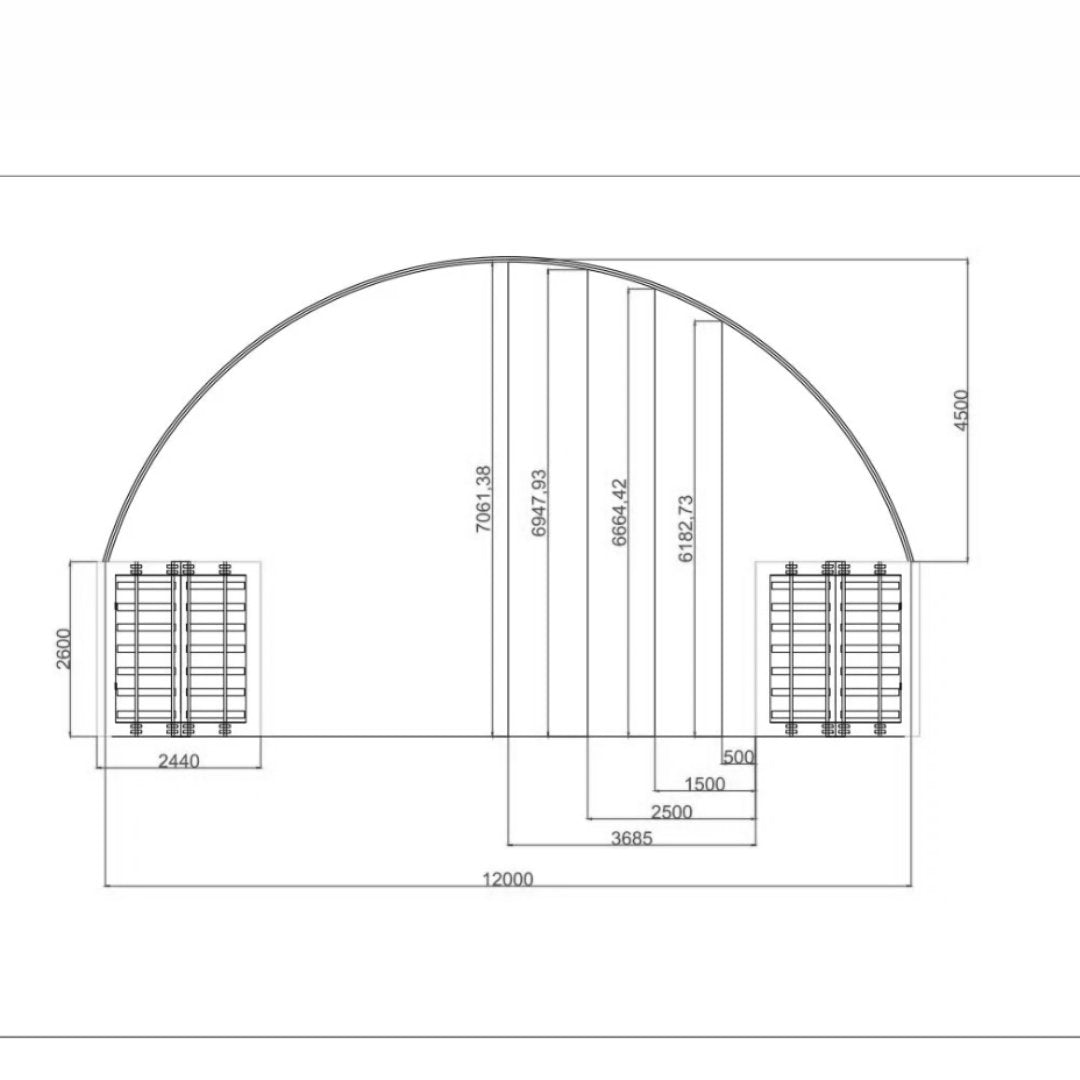

Clear Span 40ft (no interior columns)

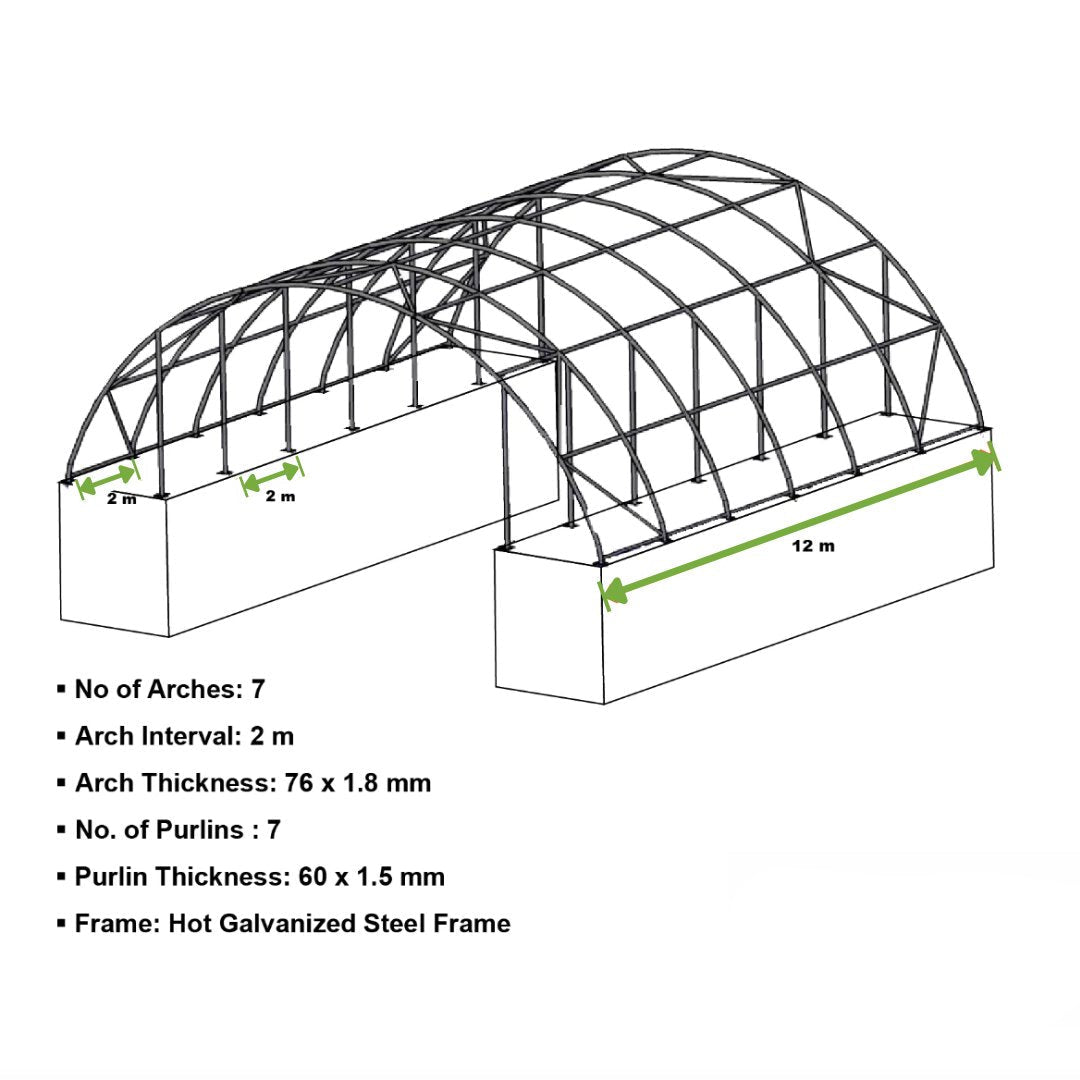

Frame Galvanized double truss steel, CE certified EN 1090
Fabric 650-900gsm fire-retardant PVC (UV resistant, waterproof)
Eaves Height ≈13–15 ft (site-specific)
Wind Rating Up to 198 km/h (engineering dependent)
Snow Load 2.6 kPa (region dependent)

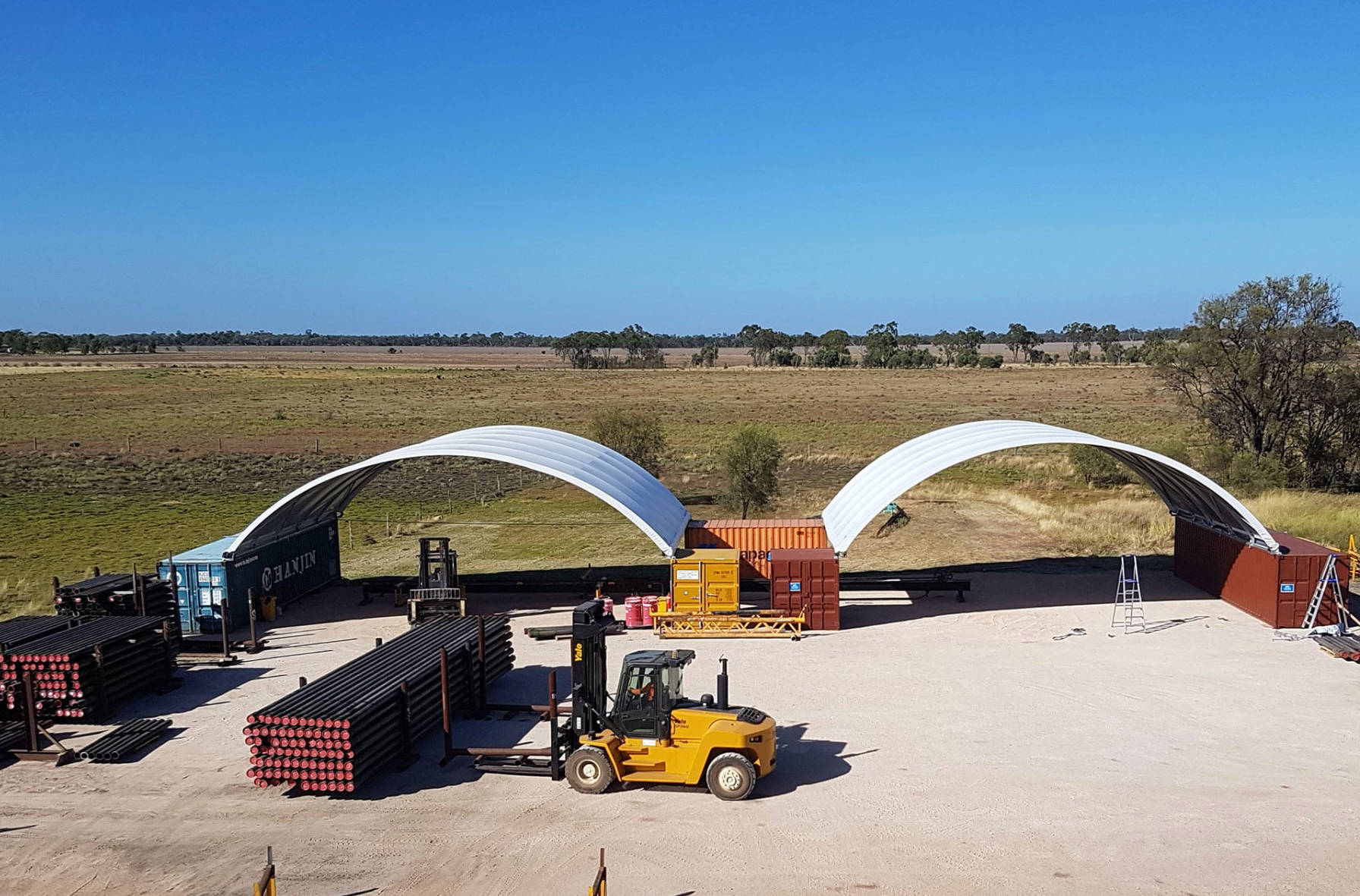

Anchoring ISO container twist-lock clamps or ballast blocks
Warranty 10+ years with a 5 year spare parts warranty
> Use Cases
> Construction
Compact cover for welfare facilities, equipment, or tool storage.
> Agriculture
Weatherproof storage for feed, hay, and small-to-mid machinery.

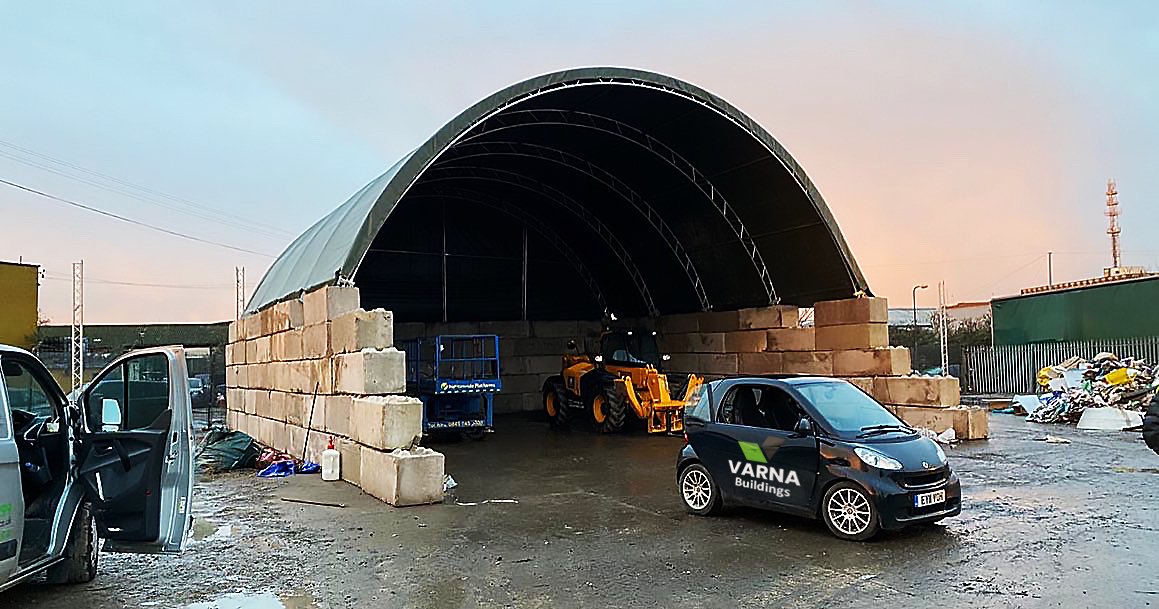

> Logistics Yards
Provides 1,600–4,800 ft² of dry cover for pallets, goods, or vehicles.
> Industrial Workshops
Functions as a relocatable maintenance bay or compact fabrication space.
> Installation & Delivery
  • Delivered modular for efficient freight and quick build.
  • Typical install: 2–3 days with telehandler or small crane.
  • Anchoring via ISO container clamps or ballast blocks.
> FAQs
> Is the Skyshield™ 40-ft Series relocatable?
Yes — its modular bolt-up design allows for dismantling and relocation.
> Why double truss instead of single?
The double truss increases frame rigidity and load performance, making it stronger in adverse conditions.
> What certifications does it meet?
CE EN 1090 fabrication with Eurocode-based wind and snow load compliance.
> Which length is best for me?
40-ft suits compact pads, 80-ft fits most yard operations, and 120-ft maximises sheltered storage and throughput.
