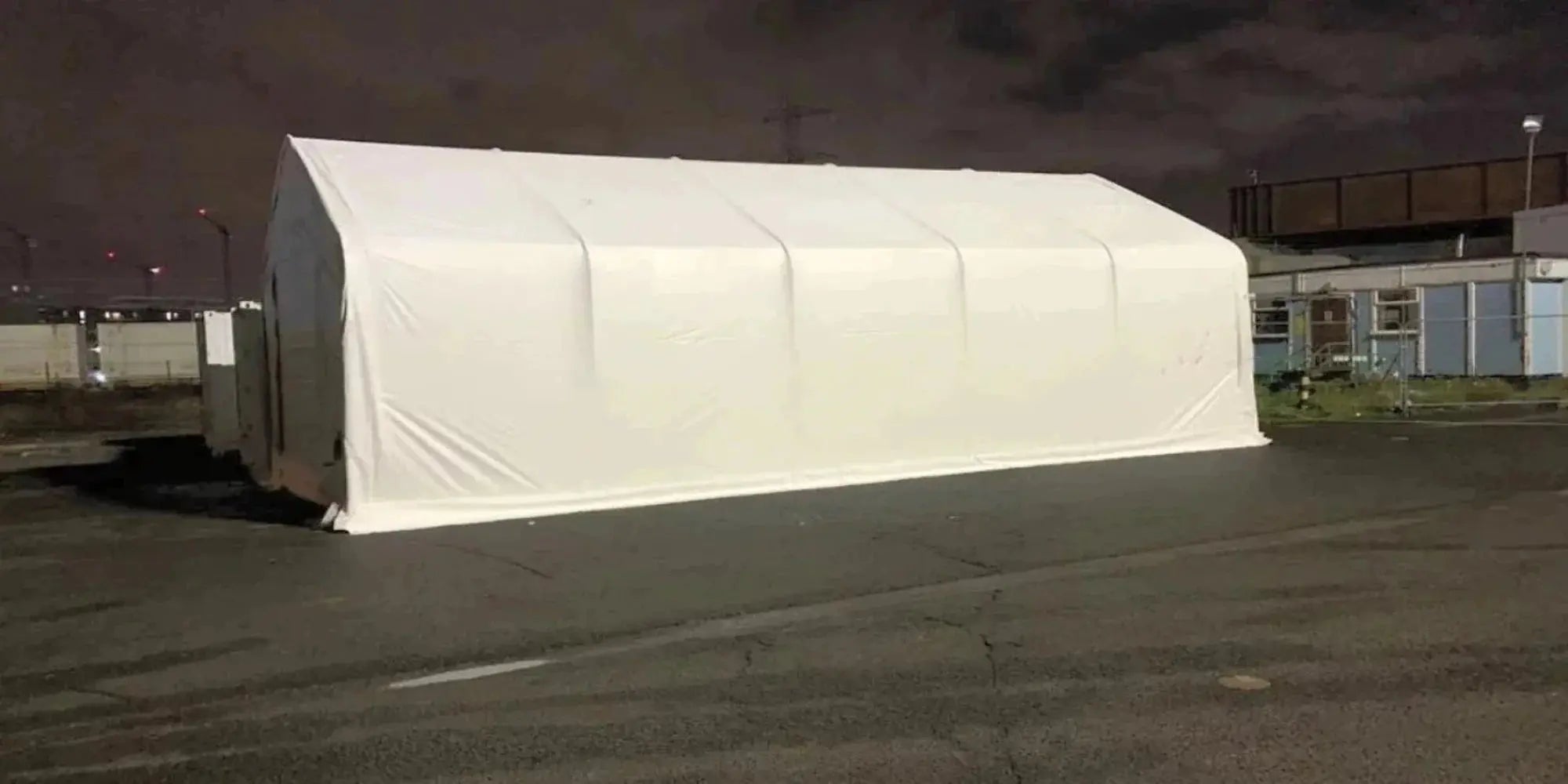

A large white tent stands on a dark paved surface outdoors at night.

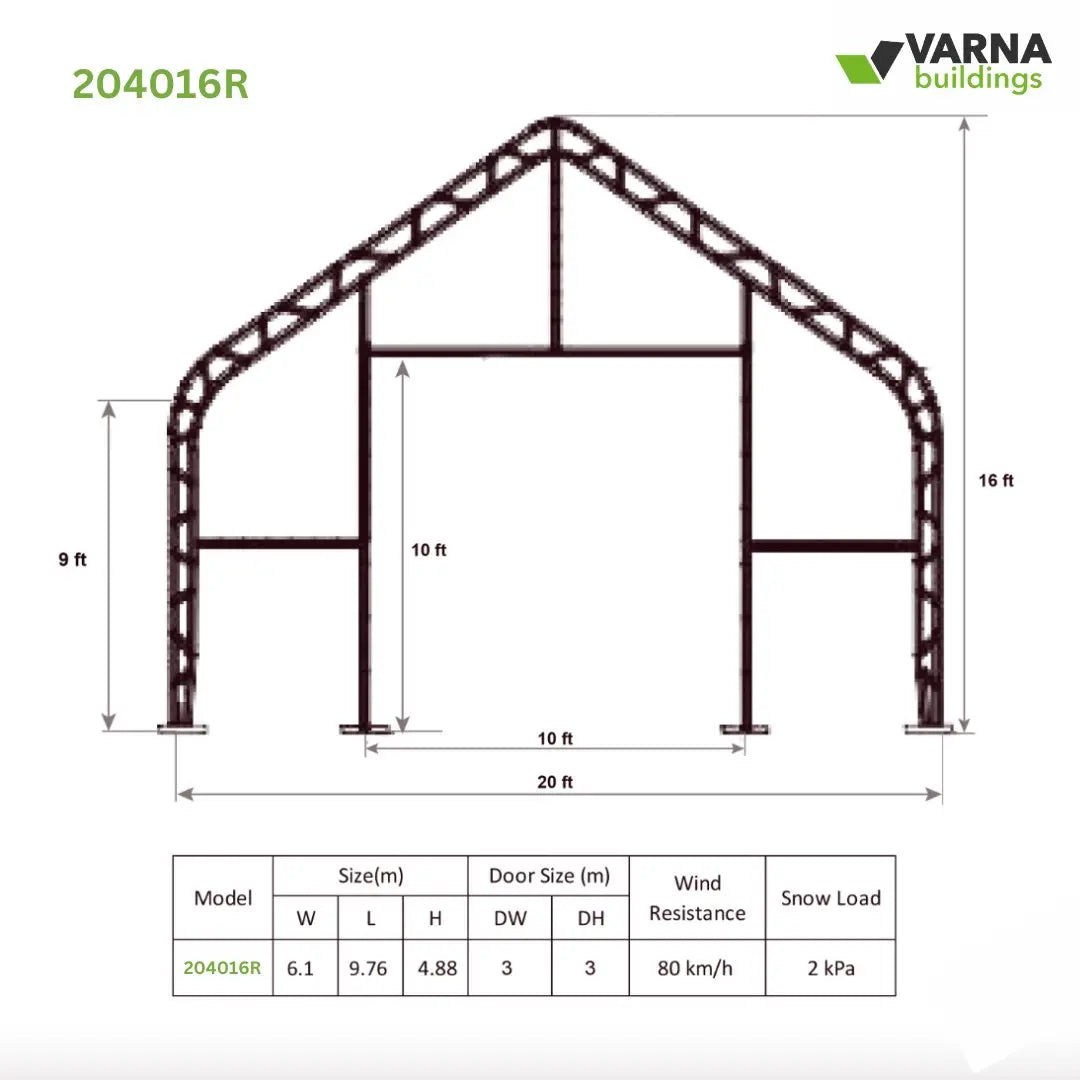

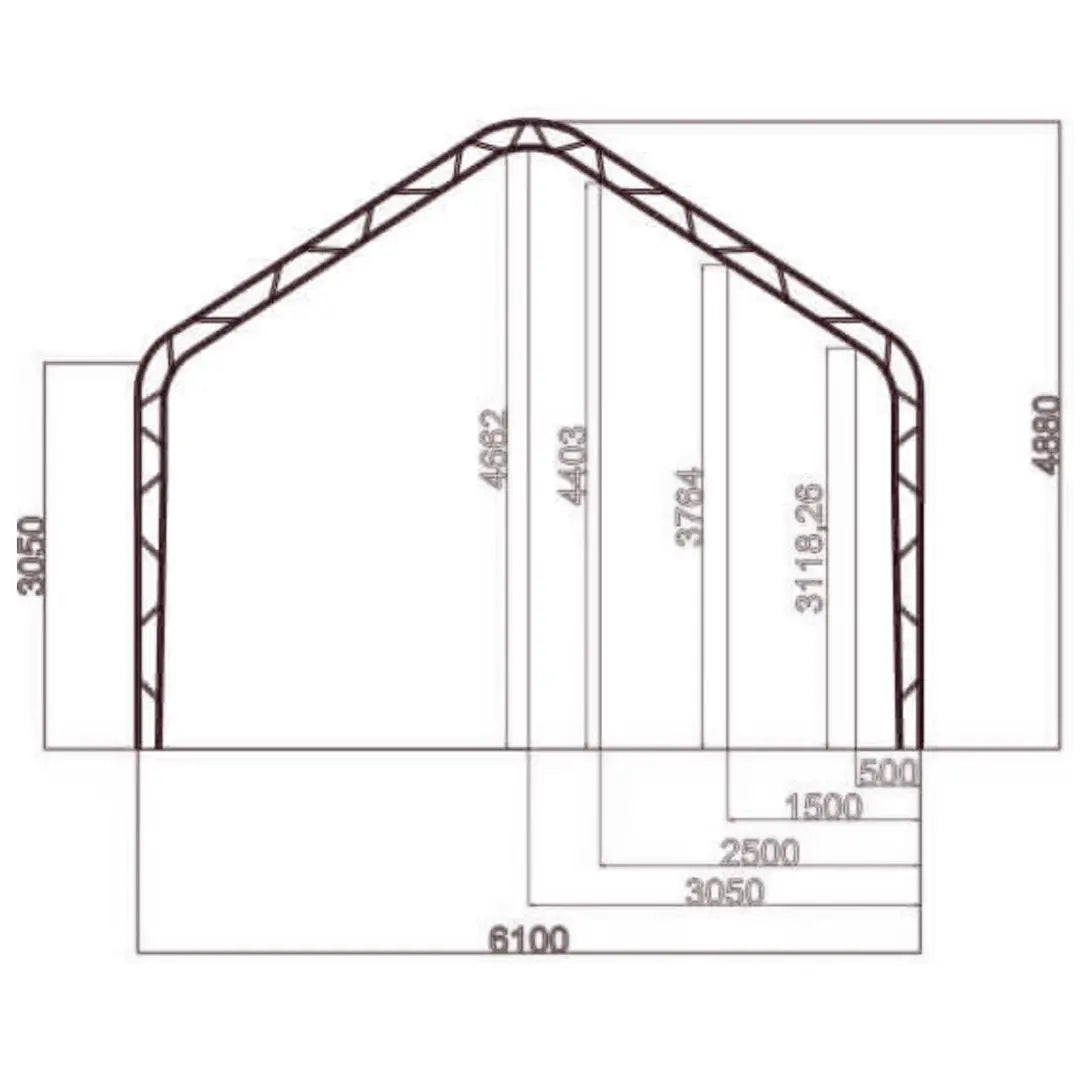

Technical drawing of a shelter structure with height and width measurements.

20ft Series Storage Shelters | Fabric Storage Buildings

Name: 20ft Series Storage Shelters | Fabric Storage Buildings
Brand: Sheltirx US
Availability: InStock

Length: 40ft

Any size possible

For larger & custom sizes please contact our team

Get a quote

DESCRIPTION

The Sheltirx 20x40x16ft Double Truss Industrial Storage Shelter provides 800 sq ft (74m²) of reliable covered space, built with a reinforced double truss frame for added stability and load performance. At 16ft eaves height, this compact yet heavy-duty shelter works for construction sites, agricultural storage, or logistics yards that need all-weather protection year-round. Built as a relocatable warehouse alternative, with a galvanized steel frame clad in 900gsm fire-retardant PVC, easy to install and easy to move when the job changes.

FEATURES

Compact Coverage → 800 sq ft of usable space with 16ft clearance
Double Truss Reinforcement → better wind and snow resistance vs. single truss
Durable Build → galvanized steel frame and heavy-duty PVC fabric
Warehouse Alternative → relocatable and cost-effective for small to mid-scale operations
Quick Setup → installed in just a few days with standard equipment

SPECS

Frame: Double truss galvanized steel

Fabric: 900gsm fire-retardant PVC

Dimensions: 20ft x 40ft x 16ft (6.1m x 12.2m x 4.9m)

Coverage: 800 sq ft (74m²)

Eaves Height: 16ft (4.9m)

Wind Tolerance: Up to 90-95 km/h (site-specific)

Snow Load: 0.5 kN/m²

Anchoring: Ground anchors, ballast blocks, or container mounting

WARRANTY

10-year fabric guarantee, 5-year spare parts warranty

INSTALLATION

Delivered modular for easy transport and assembly.

Typical install: 2-3 working days with lifting equipment.

Anchoring options: ballast blocks, ground anchors, or container mounts.

FAQ

These are the most common questions we get asked. If you don't see the answer you're looking for, contact us and our team will be happy to help.

What are storage tents used for?

Storage tents are used for warehousing, equipment protection, vehicle storage, agricultural operations, construction materials, and temporary industrial workspace.

Are storage tents suitable for long-term use?

Yes. Our storage tents are built for both temporary and long-term industrial use with durable steel frames and weather-resistant fabric covers.

How durable are storage tents in harsh weather?

Our industrial storage tents are engineered to handle strong winds, heavy rain, snow loads, and year-round US weather conditions when properly installed.

Can storage tents be installed on concrete or asphalt?

Yes. Storage tents can be installed on concrete, asphalt, compacted ground, or other suitable hardstanding surfaces.

How quickly can a storage tent be installed?

Most storage tents can be installed within a few days for standard sizes, while larger structures may take 1-2 weeks depending on configuration.

Are storage tents more cost-effective than permanent warehouses?

Yes. Storage tents offer a significantly lower upfront cost and faster deployment compared to traditional warehouse construction.

Can storage tents be customised?

Yes. Storage tents are available in different sizes and configurations, with optional doors, insulation, ventilation, lighting, and side panels. Contact our team for more information on custom options.

Do storage tents require foundations?

In most cases, extensive foundations are not required. Structures can be anchored directly onto existing surfaces.

What industries use storage tents?

Storage tents are commonly used in logistics, construction, farming, recycling, manufacturing, and transportation industries.

Can storage tents be moved to another location?

Yes. All of our industrial storage tents can be dismantled, relocated, and reinstalled whenever needed.
